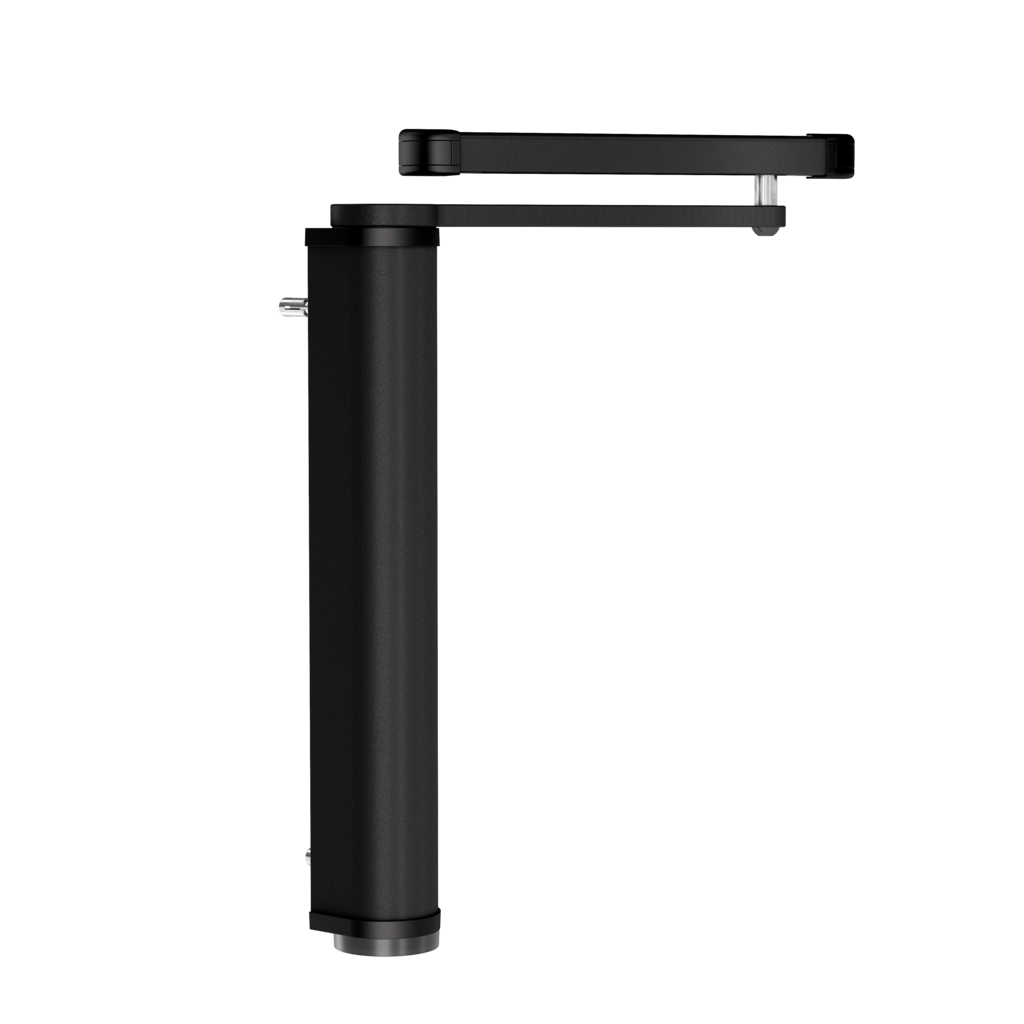

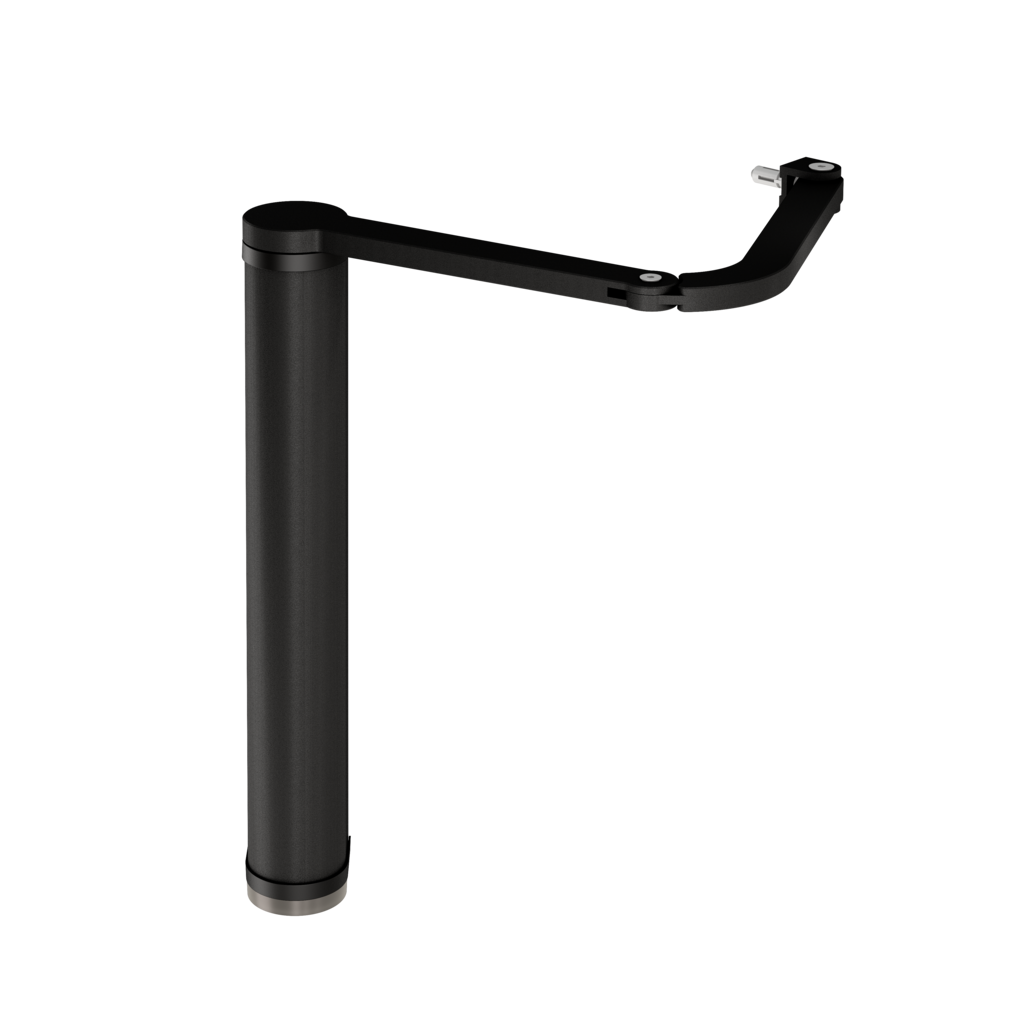

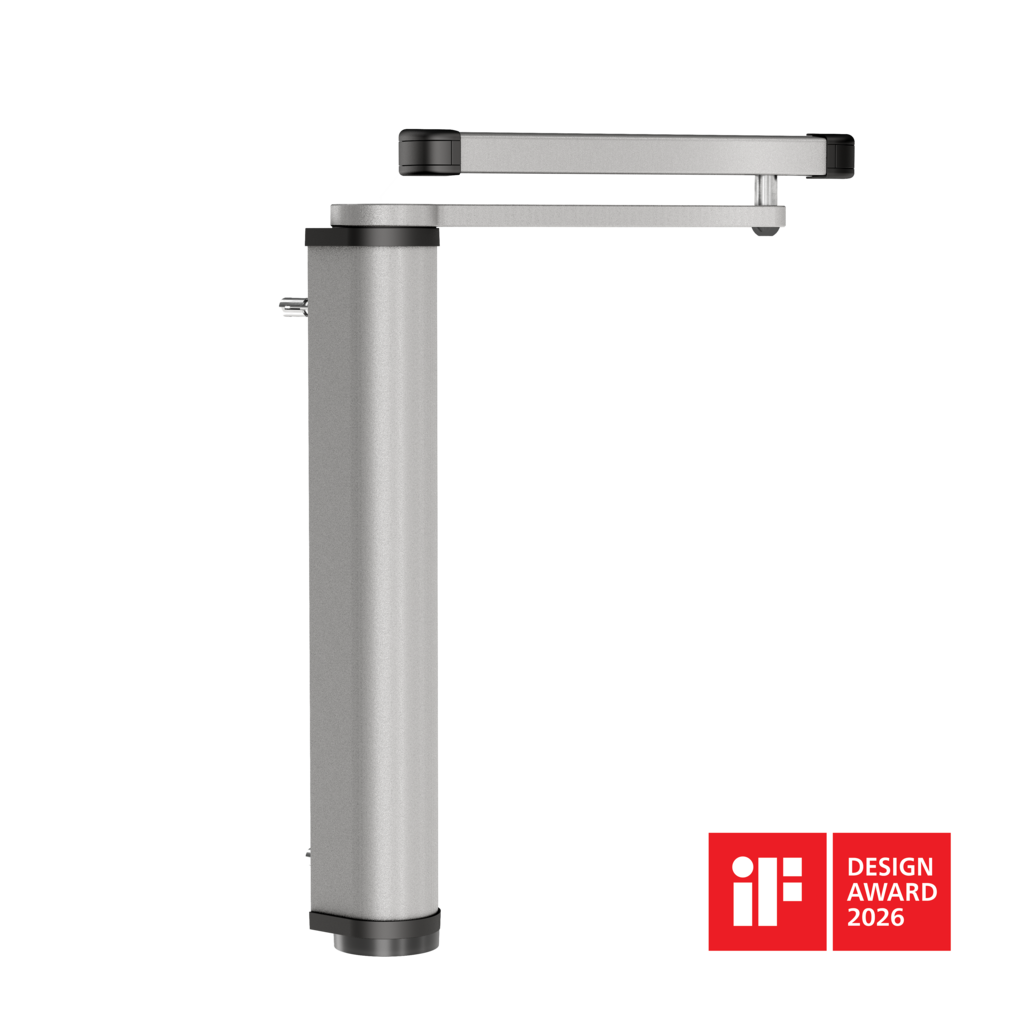

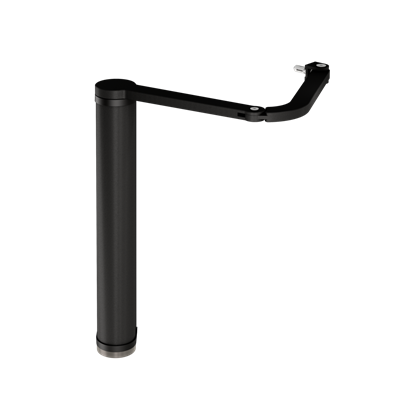

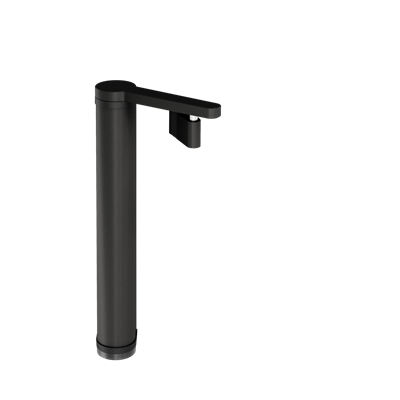

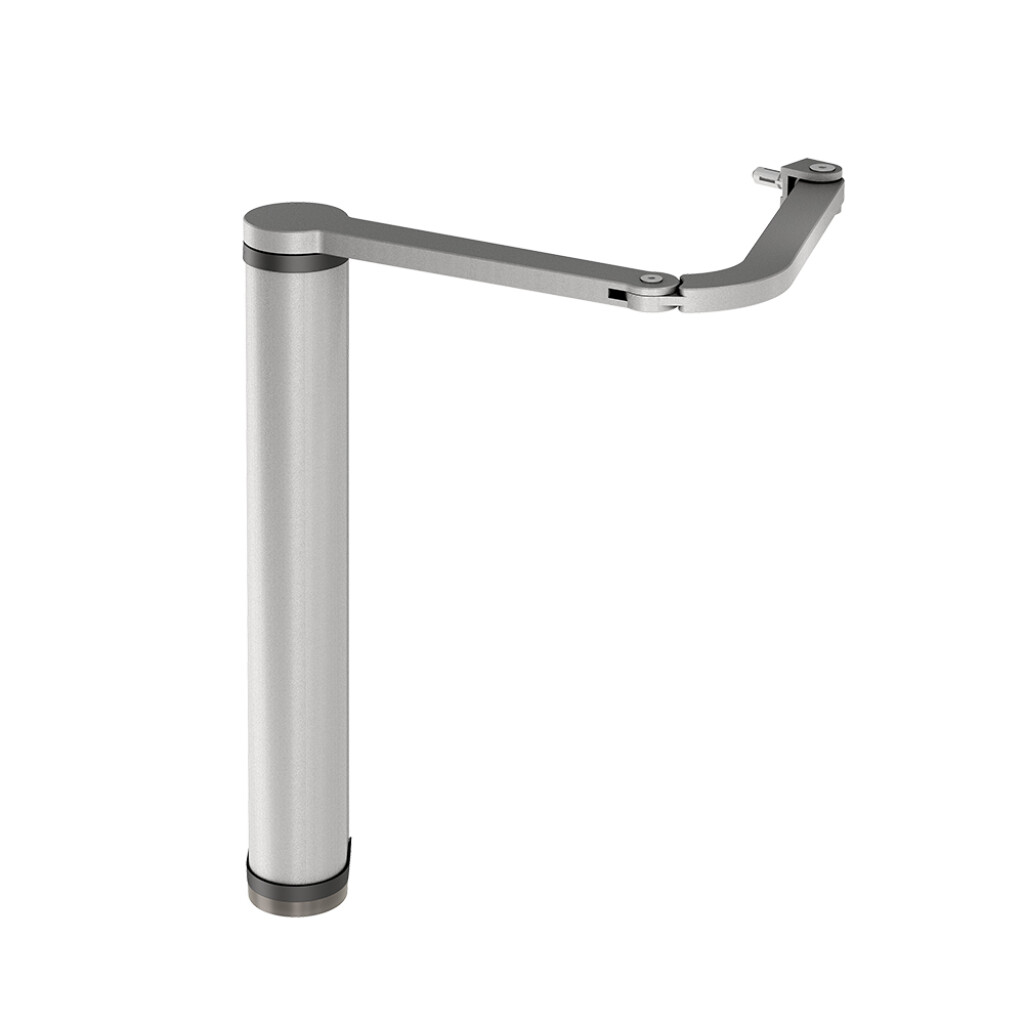

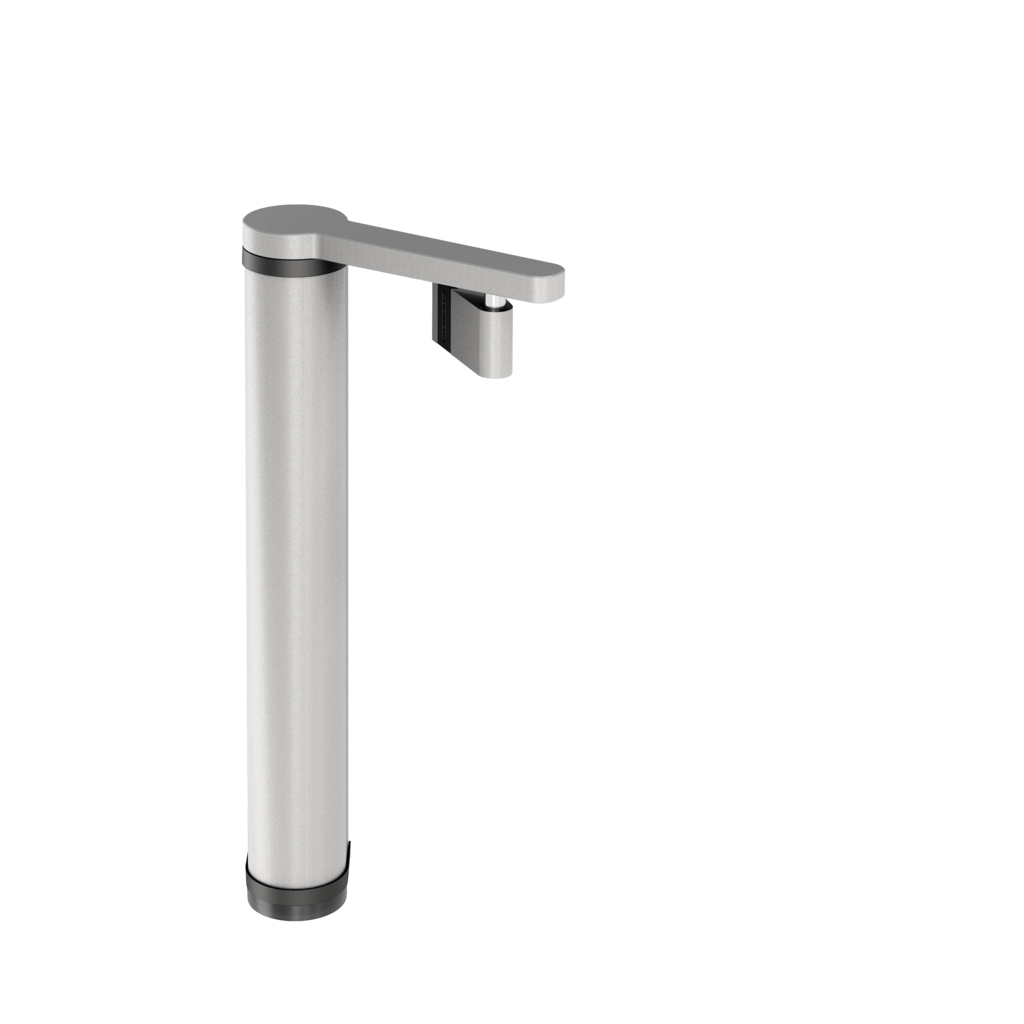

Motorised gate closer for pedestrian swing gates

Item No. D00000176 - VENUS
The Venus is a plug-and-play motorised gate closer for pedestrian swing gates. The compact all-in-one gate operator can easily be installed on any type of post and hinge thanks to 3 different arm types. The innovative motor's performance remains unaffected by manual force. When combined with access control, the Venus also works as a low-energy gate opener.
This product cannot be ordered at the moment.
Specifications
Specifications
  • Motorised gate closer with integrated electronics
  • 150 Nm torque
  • Fits on 80 mm profiles
  • For pedestrian gates up to 1400 mm wide and 100 kg
  • Steel gear box
  • Anodized aluminium cover
  • 3 different arm options for installation
  • Easy mounting with Quick-Fix
  • ETL-tested
  • Input main Power supply: 115V AC ±10% (60Hz) to 230V AC ±10% (50Hz)
  • Motor voltage: 24V DC
  • Integrated warning light
  • Automated obstacle detection with reverse function
  • Brushless motor: long lifespan and intensive usage
  • Reversible motor with backdrivability for easy manual use - to be combined with a lock
  • Compact and vandal-proof design
Available in following RAL-colours
Features
Installation Movies
Downloads

Product
VENUS-S Bike Storage
VENUS-S with VENUS-RAIL
VENUS-A
VENUS-G

Product sheet
