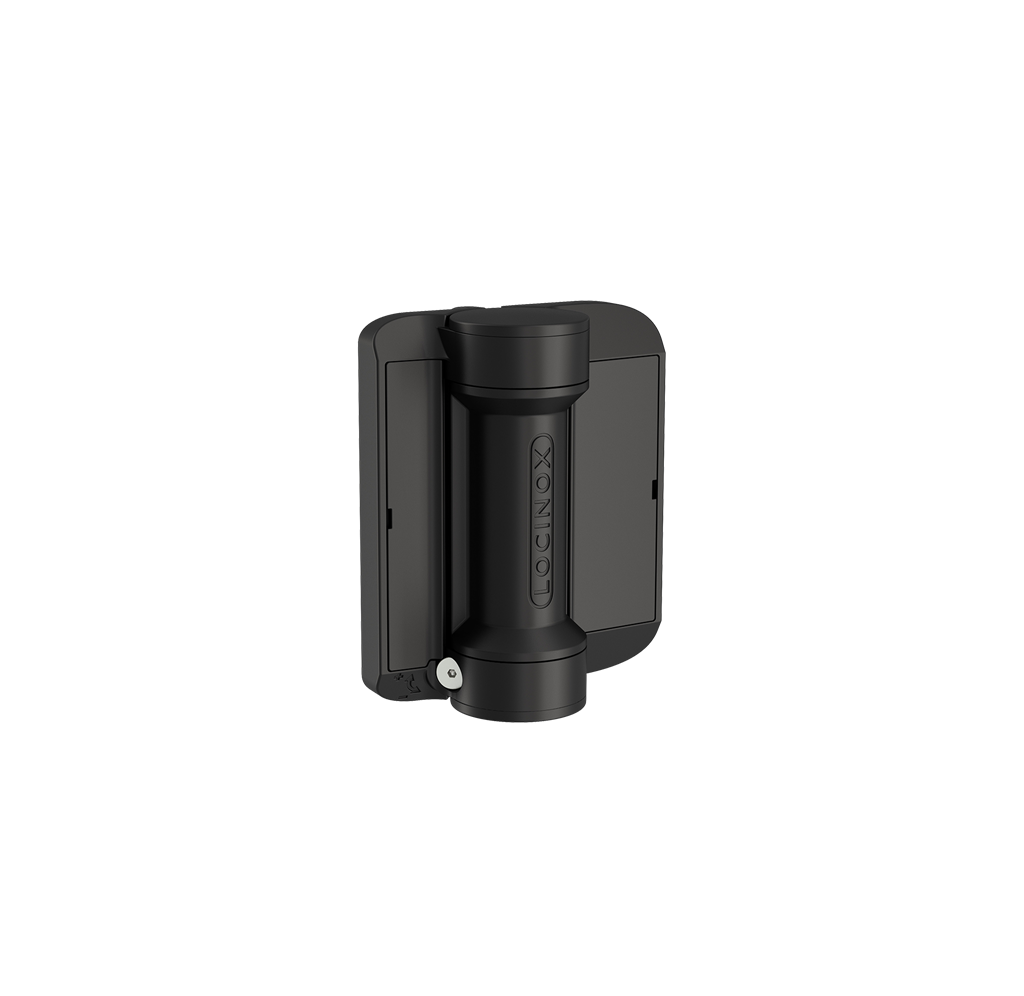

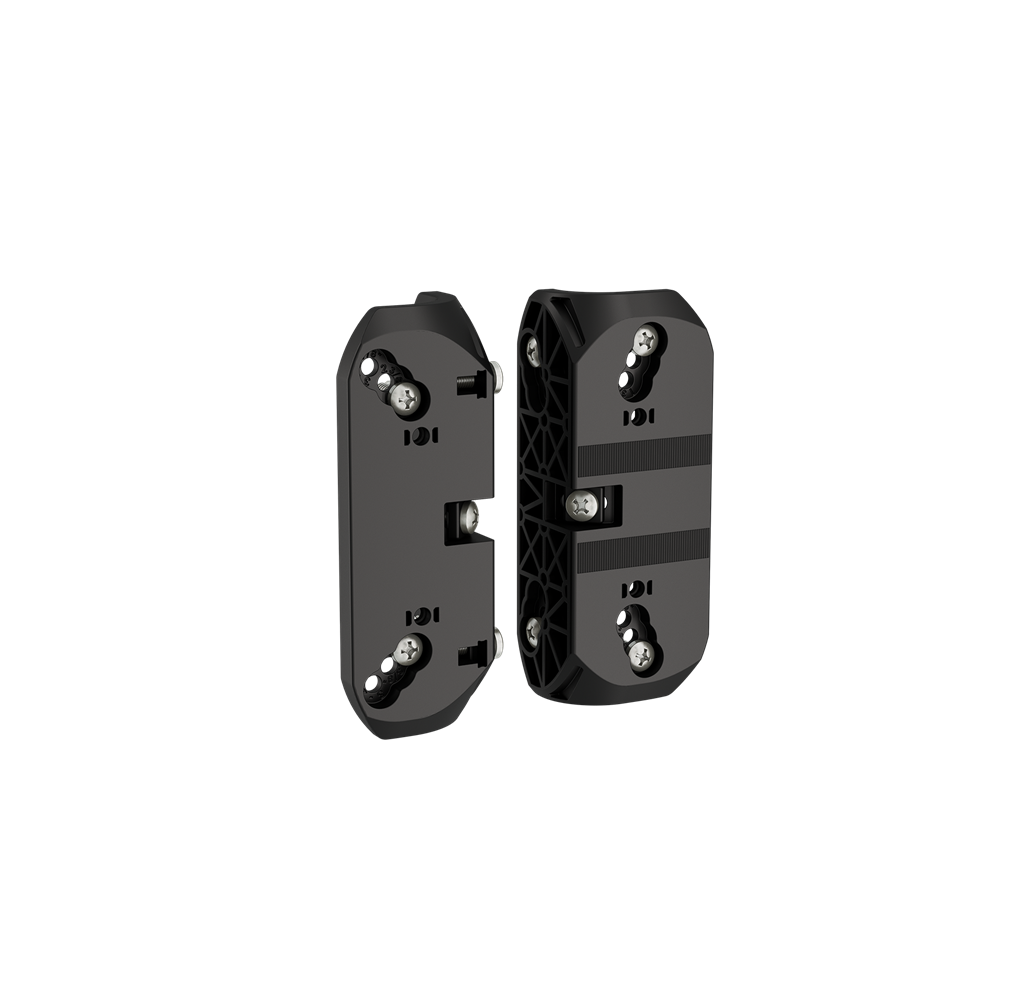

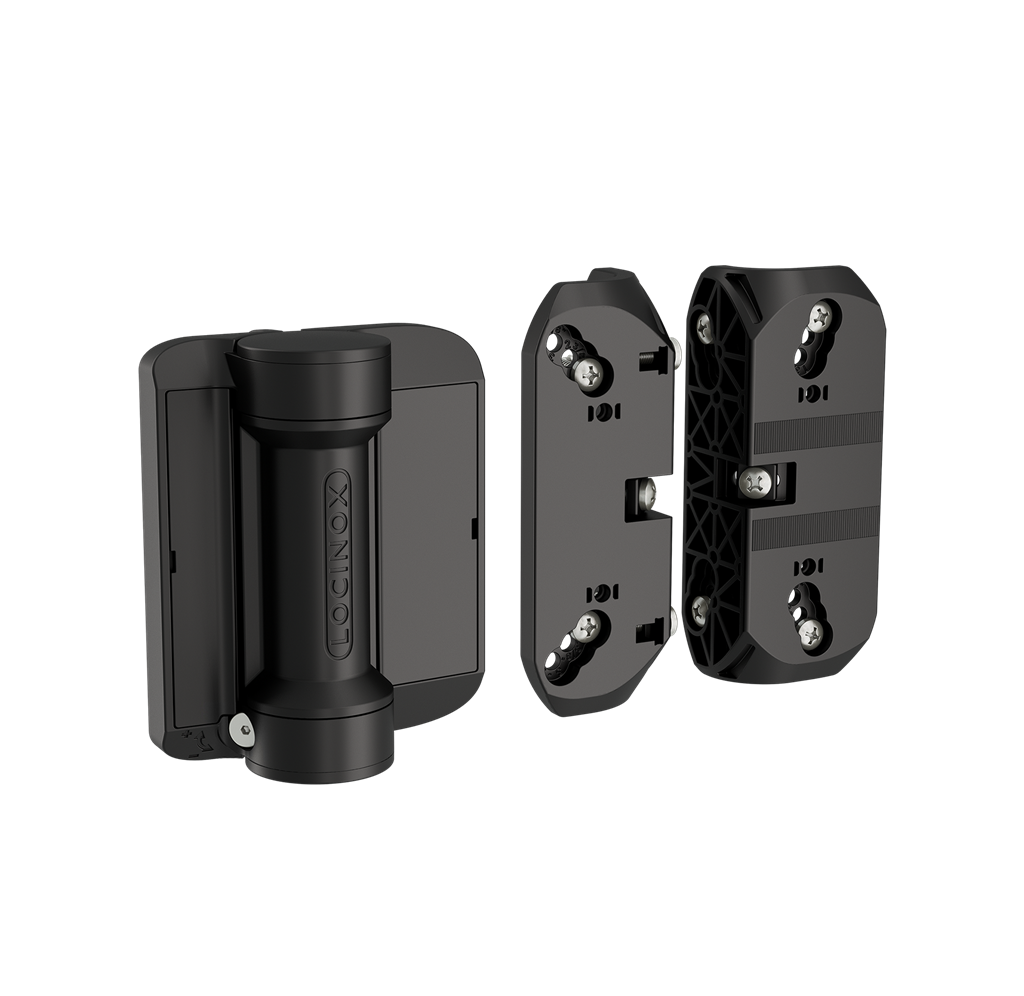

180° Spring hinge mounted with self-drilling screws

180° Spring hinge mounted with self-drilling screws

Item No. D00000132 - SERVAL

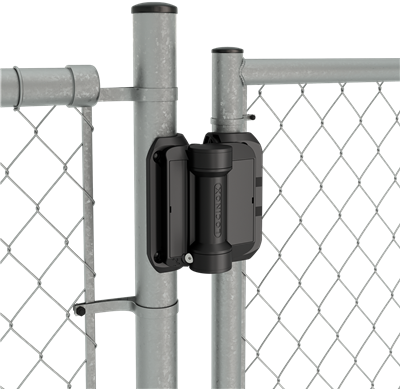

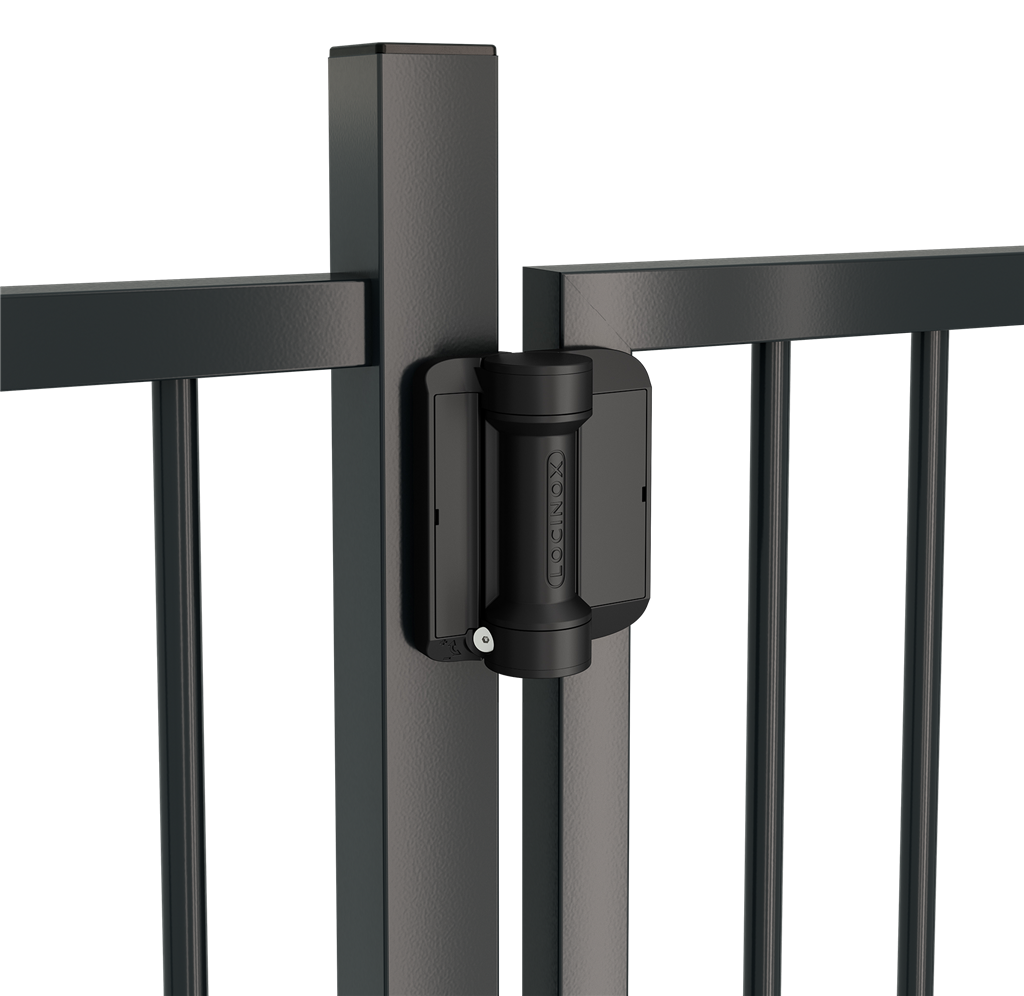

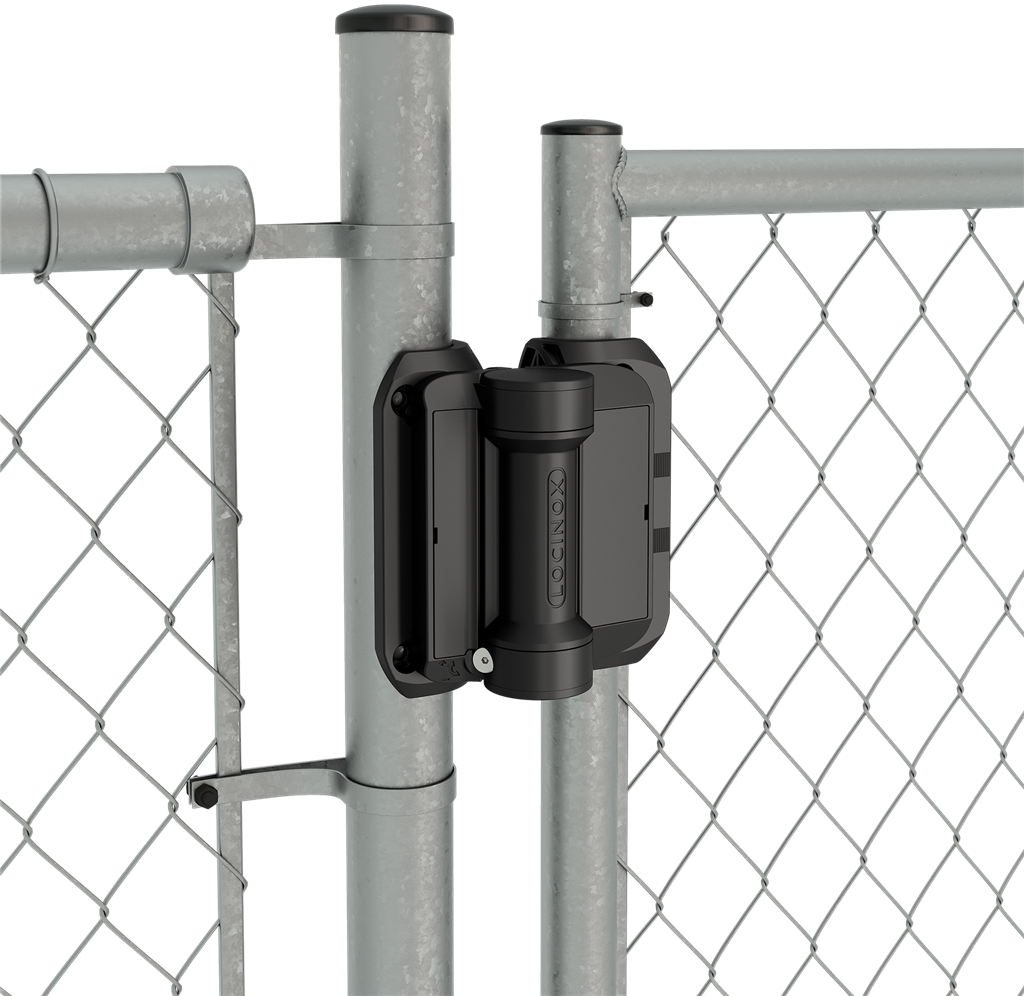

The Serval is a compact spring hinge with force adjustability. The glassfibre reinforced polyamide housing protects the high-tech internal components, allowing for a perfect functioning in all weather circumstances. Its 20 mm vertical and horizontal adjustability ensures an easy and flexible installation. Firmly fixed with self drilling screws - no welding required. Suitable for installation on square and round frames.

2 product(s) found

180° Spring hinge mounted with self-drilling screws - SERVAL-SD-K

Item No. P00008185

180° Spring hinge mounted with self-drilling screws for square profiles (2 pieces)

180° Spring hinge mounted with self-drilling screws - SERVAL-SD-R

Item No. P00008191

180° Spring hinge mounted with self-drilling screws for round profiles (2 pieces)

Specifications
Drawings
Downloads

Specifications

Specifications	180° spring hinge with force adjustability Fiberglass reinforced polyamide housing For left and right turning gates Fast and easy fixing with self drilling screws Force adjustability from 2 up to 7 Nm (at closed position) Easy to open: Max. 10 Nm 20 mm horizontal and vertical adjustability Use of NOSTEP anti-climb device is recommended
Features
