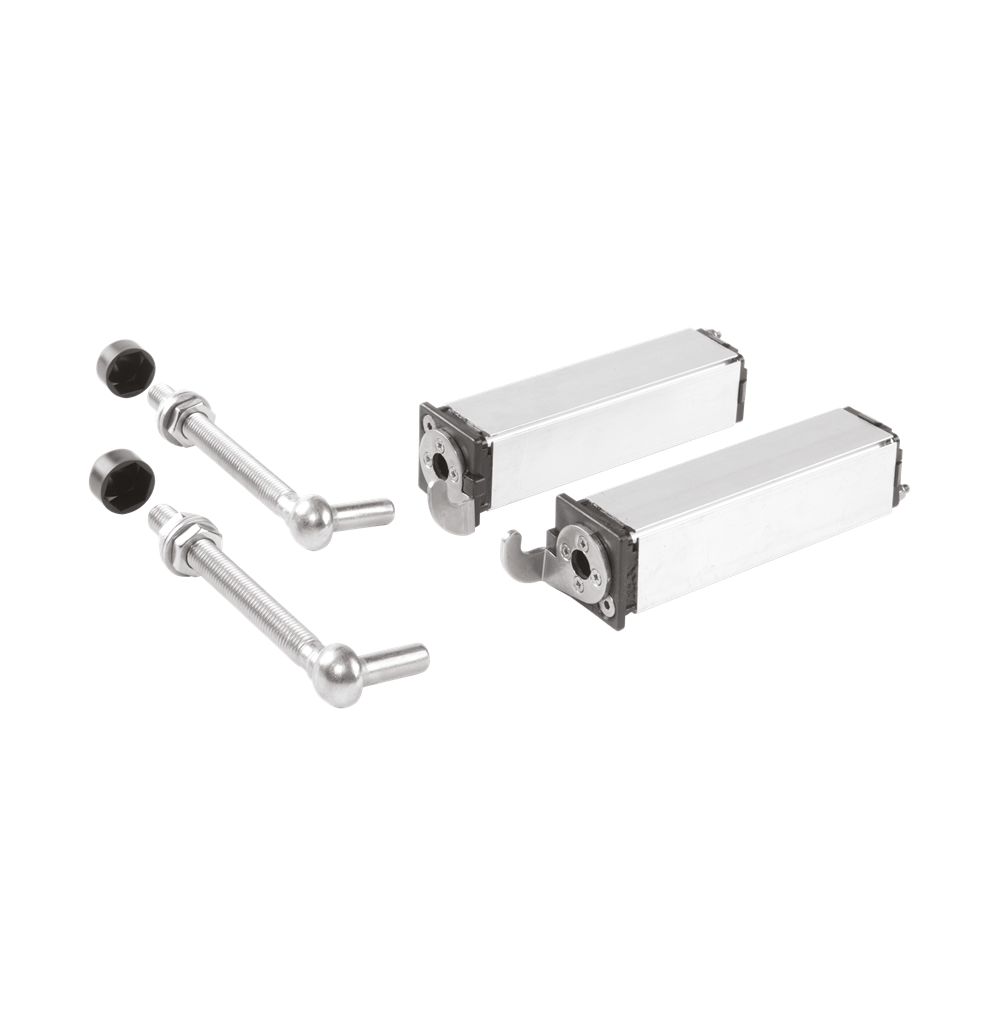

Spring hinge for garden gates

Item No. D00000069 - SWING40

Spring hinges for garden gates and pedestrian gates. The set can easily be fitted inside a 40x40 mm tubing. The force can be adjusted by means of an Allen key.

2 product(s) found

Spring hinge for garden gates - SWING40-130

Item No. P00009387

Spring hinge for garden gates with Hangerbolt 130 mm for Profile 40 x 40 mm

Spring hinge for garden gates - SWING40-150

Item No. P00009389

Spring hinge for garden gates with Hangerbolt 150 mm for Profile 40 x 40 mm

Specifications
Drawings
Installation Movies
Downloads

Specifications

Specifications	One for the top, one for the bottom Fixing: slides in gate frame Only for gate frames 40x40/2 mm Reversible: left/right Adjustable spring tension: M3 allen key Maximum width of the gate: 1300 mm Maximum weight: 75 kg Maximum profile thickness: 2 mm
