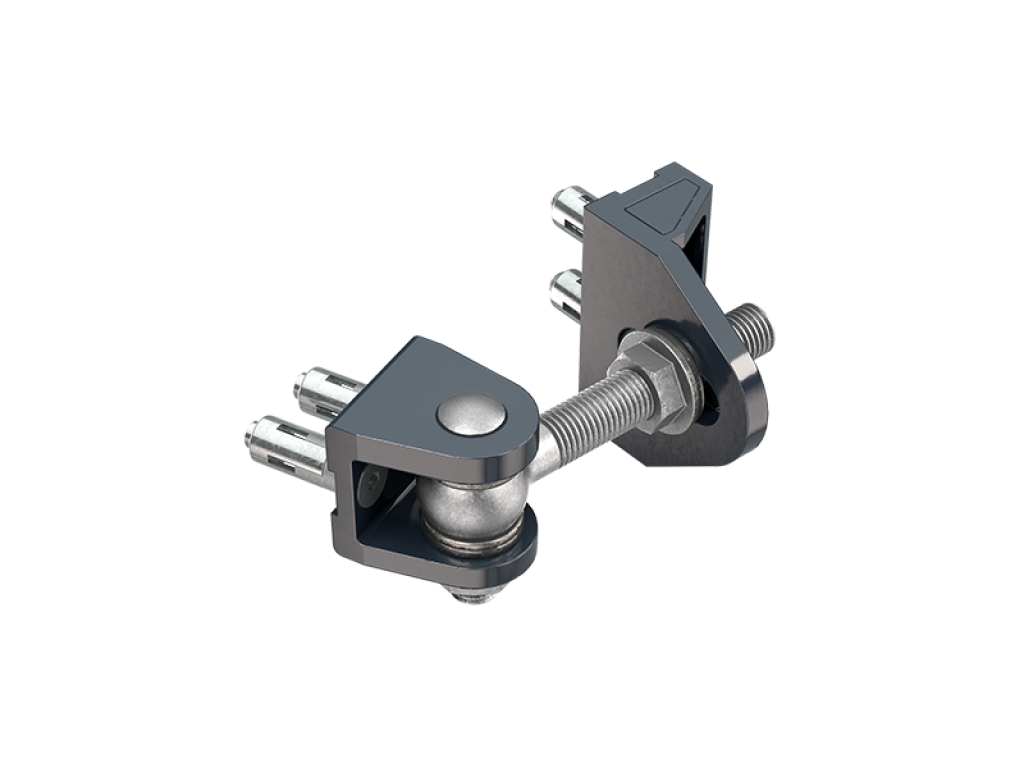

180° Bolt-on 4D adjustable hinge
Item No.
D00000071 - BOLTONHD-4D
180° hinge which can quickly be mounted without any welding being required. It offers all advantages of the GBMU4D range: vandal-proof, adjustment of height, depth and distance between gate and post, left/right interchangeable so it can be used for both left and right turning gates. BOLTONHD-4D is available in M12 and M16, and always in 2 versions: one with Quick-Fix on both sides and one with Quick-Fix on the post, and on gate side a bolt through fixing for gate frames from 40 to 60 mm.
7 product(s) found
Filters
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M16-110-02-ALUM
Item No.
P00015372
180° Bolt-on 4D adjustable hinge (2 pieces) - M16 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Uncoloured
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M12-90-02-ALUM
Item No.
P00015371
180° Bolt-on 4D adjustable hinge (2 pieces) - M12 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Uncoloured
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M16-110-02
Item No.
P00013389
180° Bolt-on 4D adjustable hinge (2 pieces) - M16 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Various colours
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-4060-M16-110-02
Item No.
P00013383
180° Bolt-on 4D adjustable hinge (2 pieces) - M16 - Bolt-on U-shaped earplate with 4060 fixing & Bolt-on GRIP with internal threaded bushing fastening - Various colours
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M12-90-50-ALUM
Item No.
P00011289
180° Bolt-on 4D adjustable hinge - M12 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Uncoloured
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M16-110-50
Item No.
P00011288
180° Bolt-on 4D adjustable hinge - M16 - Bolt-on U-shaped earplate with Quick-Fix fixing & Bolt-on GRIP with Quick-Fix fixing - Various colours
180° Bolt-on 4D adjustable hinge - BOLTONHD-4D-QF-M16-110-50-ALUM
Item No.
P00011287
180° Bolt-on 4D adjustable hinge - M16 - Bolt-on U-shaped earplate with 4060 fixing & Bolt-on GRIP with internal threaded bushing fastening - Uncoloured
Specifications
Specifications |
|
Available in following RAL-colours | |
Features |
Drawings
Installation Movies
Downloads
2D/3D drawings
Installation instructions
Hinges specifications
