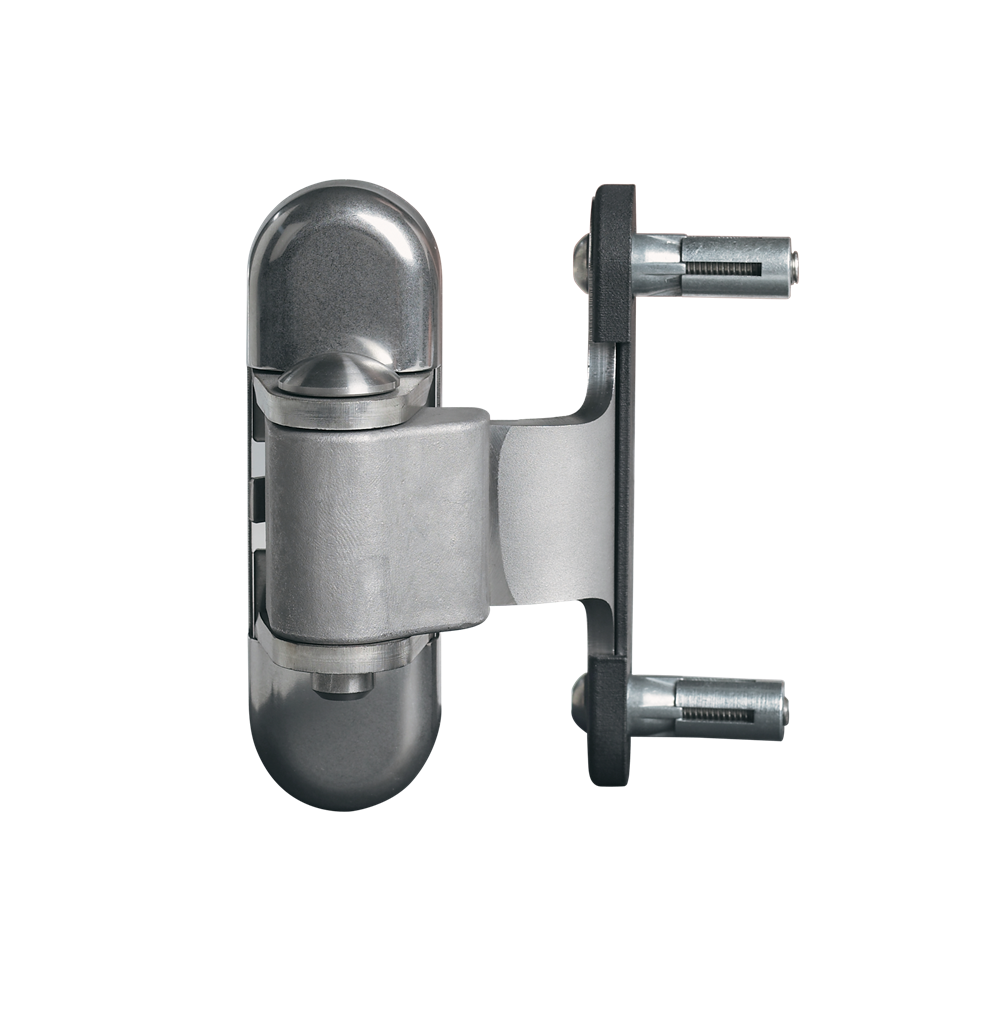

3-way adjustment hinge

Item No. D00000070 - 3DM

Stainless steel hinge for aluminium/metal gates equipped with the fast Quick-Fix system. The hinge is adjustable in three dimensions: height, left/right alignment and swing direction. Also available with hot-dip galvanized arm.

2 product(s) found

3-way adjustment hinge - 3DM-VP100-P50-A2

Item No. P00006716

Hinge arm in stainless steel (2 pieces)

3-way adjustment hinge - 3DM-VP100-P50-HDG

Item No. P00006740

Hinge arm in hot-dip galvanised steel (2 pieces)

Specifications
Drawings
Downloads

Specifications

Specifications	180° hinge for metal & aluminium gates Innovative Quick-Fix mounting Reversible for left/right swinging gates 15 mm adjustable in width, 10 mm in height and 15 mm in depth Vandal-proof Hinge socket, axle and socket cover plate in stainless steel
Features

Drawings

Downloads

3-way adjustment hinge

Do you want to add the selected products to your shopping basket?

Product

2D/3D drawings

Installation instructions

Detail anthracite gate in front of forest

Detail anthracite gate

Opening anthracite gate at modern house

Hinges specifications
