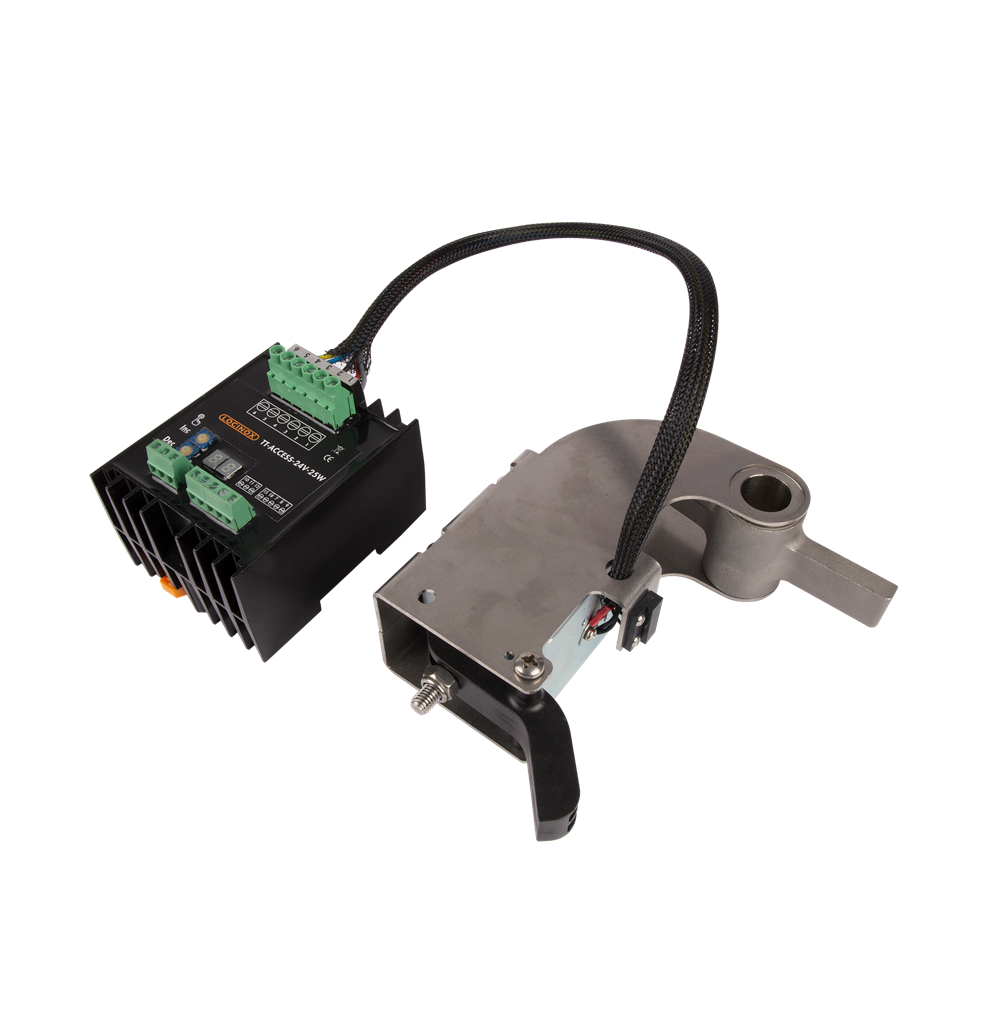

Fail Close electromodule for TURNITEC - TT-FC2

Item No. P00008194 - TT-FC2
With the electromechanical module an operator has the ability to control incoming and outgoing traffic. Granting access or closing the system, changing the rotational direction and executing access control, all can be managed easily with the TURNITEC module. After authorisation the turnstile is unlocked electronically and visitors have access to the terrain.
This product cannot be ordered at the moment.
Specifications
Specifications
  • Fail Close electromodule (power loss = locked turnstile)
  • Easy to install in a TURNITEC base module or as an expansion on an existing system
  • Interchangeable with the mechanical module
  • Suitable for left or right turning turnstiles
  • Locking of the electromechnical module by powerful electromagnets
  • Time range (1 to 99s) of switched state controlled by push buttons
  • Set time clearly visible on display
  • 100% secure: reset function to rest after 1 full rotation of the turnstile
  • Fitted with a 24V DC power supply made for exterior use and with integrated timer
  • Robust control module: encapsulated for superior humidity resistance
  • Input voltage: 220V AC
  • Maximum output power: 25W
  • Easy to expand with a TT-COUNTER-LIGHT module to control a counter and/or signalisation
  • Connection between module and power supply by means of Plug&Play connector
  • Control module in an aluminium powder coated housing with heat dissipation fins
  • Manual release by key always possible
  • Anti-passback security: protected against the simultaneous entrance of 2 persons thanks to the 60° locking mechanism
  • High quality and guaranteed performance (tested on 1 million movements)
