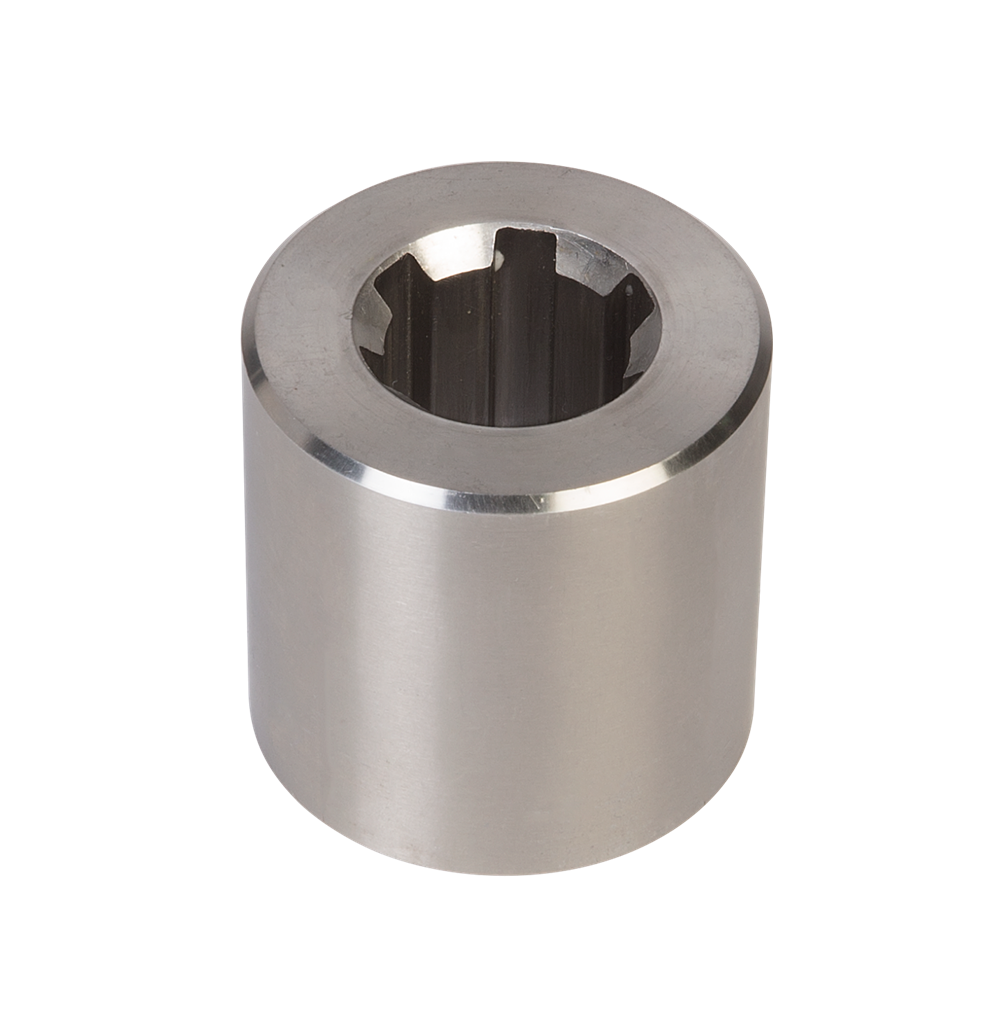

Hub for seamless connection with turnstile - TT-SAH

Item No. P00008274 - TT-SAH

Hub for seamless connection of the Turnitec base mechanism with the spline axle and the turnstile.

Specifications

Grooved hub for optimal connection with spline axle
1 on 1 transmission of rotational movement
Hub in stainless steel
Equal distribution of the load over the hub's teeth (increased fatigue resistance)
Tolerances according ISO2768-M
Diameter and height: 60 mm
Diameter center hole: 28 mm
Height of teeth: 3 mm
