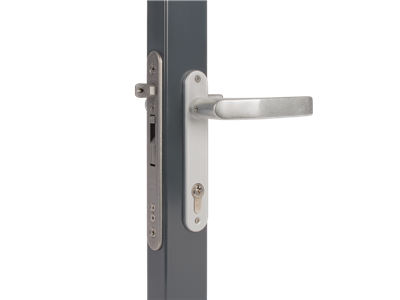

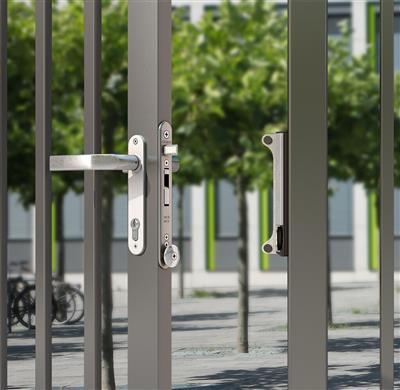

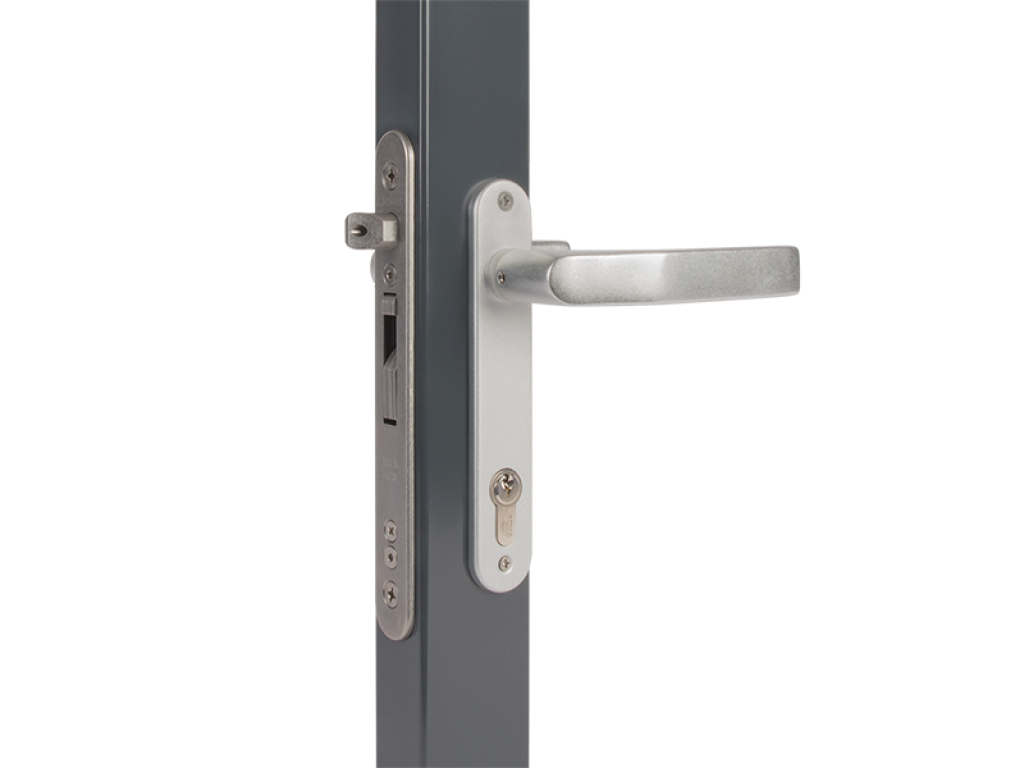

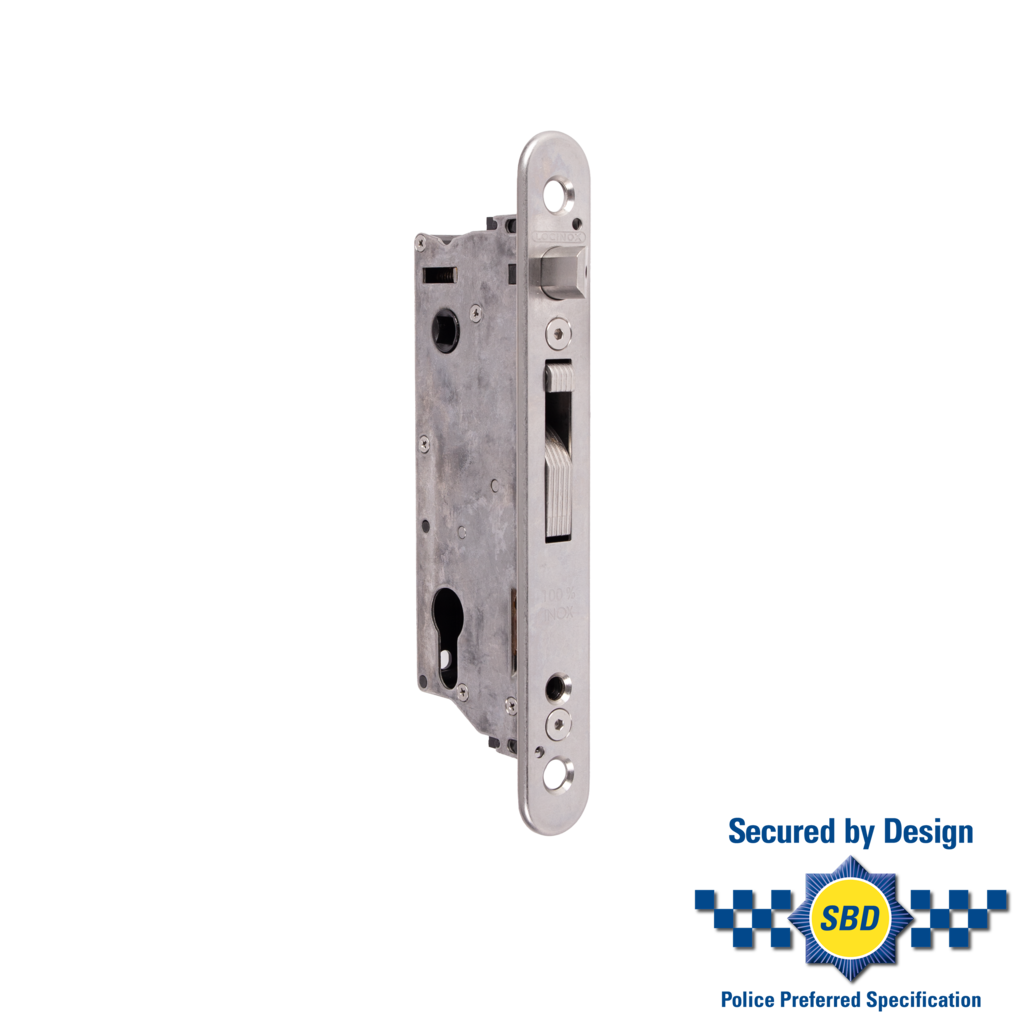

Insert lock with 40 mm backset for profiles of 60 mm or more - SIXTYLOCK

Item No. P00008053 - SIXTYLOCK
Prime insert lock with 100% stainless steel mechanism. The stainless steel, adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminium and PVC gates. Thanks to the patented "Click-It" system the lock is mounted in seconds.
This product cannot be ordered at the moment.
Specifications
Specifications
  • Stainless steel lock mechanism with cover plate against dirt penetration
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Backset 40 mm, for mounting in profiles of 60 mm of depth or more
  • Continuous adjustment of the daybolt up to 10 mm without dismounting the lock box
  • Key-operated self-latching bolt
  • Easy left or right changing of the self-latching daybolt
  • Throw of the hook: 21 mm
  • The center distance between the cylinder and the handle: 92 mm
  • Compatible with Europrofile cylinder

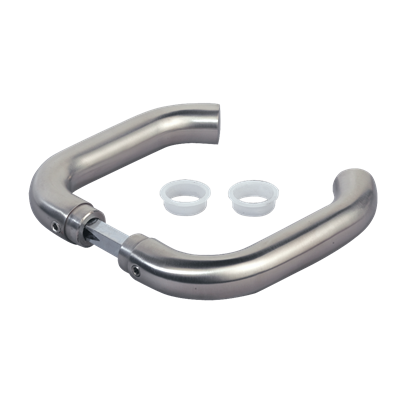

  • Handles to be ordered separately
  • Optional: cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel
