TURNITEC - Modular (electro)mechanical control unit for turnstiles - TTEC-SMS-FC2-FC2-SDM-ZCL

Item No. P00015801 - TTEC-SMS-FC2-FC2-SDM
TURNITEC - Modular (electro)mechanical control unit for turnstiles - FC2 - FC2 - - ZCL
This product cannot be ordered at the moment.
Specifications
Specifications

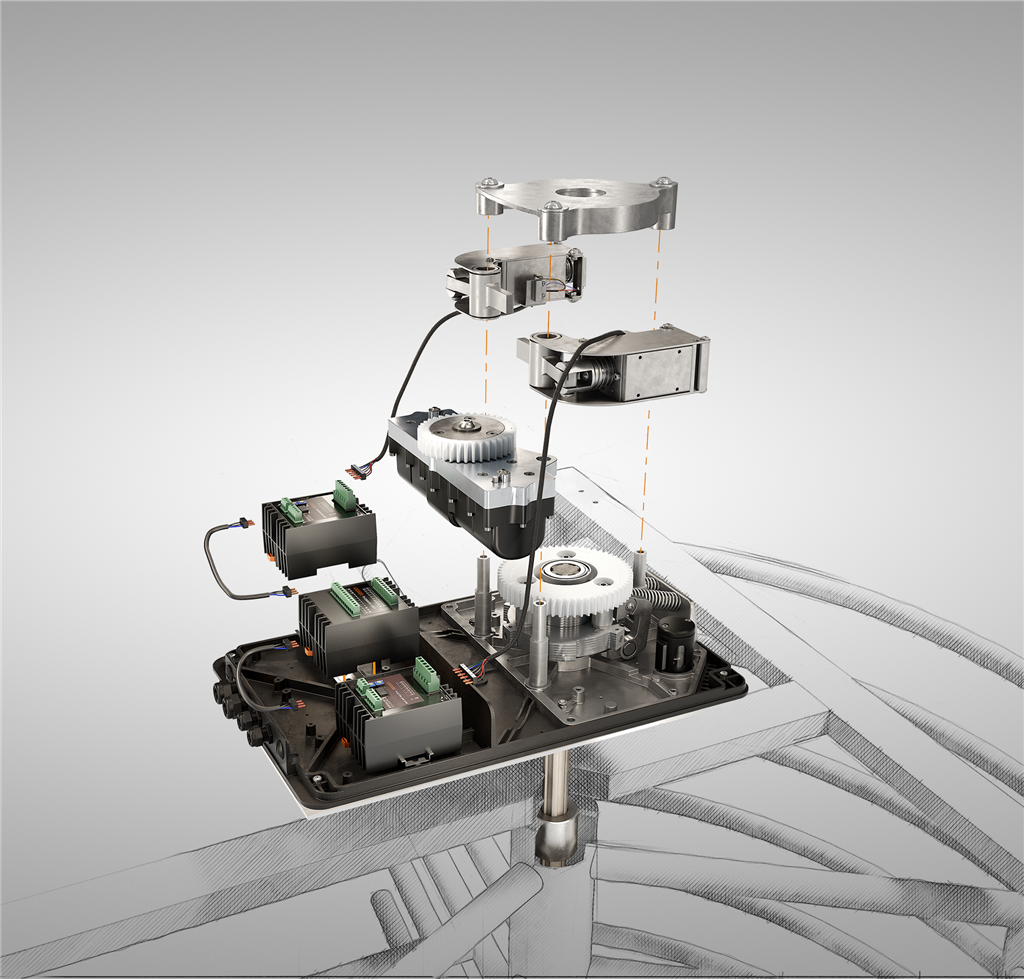

  • 100% modular system: composition according customers' desires and expandable at any moment
  • Available for 3-arm (120°) and 4-arm (90°) turnstile
  • Optional interchangeable left/right mechanical or electromechanical modules (Fail Open or Fail Close)
  • Automatic return to starting position (by means of industrial pressure springs) after every passage
  • Anti-passback security (locking after a 60° or 45° rotation): prevents the simultaneous passing of 2 persons
  • Very robust implementation and strong connection with the turnstile by a 34 mm diameter spline axle (length 325 mm)
  • Manufactured completely in rust-proof parts (stainless steel and aluminium)
  • Optional welding plate in black or stainless steel enables an easy mounting on every turnstile
  • Optional damping system guarantees smooth and gradual movements. Damping is continuous and unaffected by temperature changes (patented system)
  • Possible to set signal duration
  • IP55 housing protects the mechanism against water, dirt, wind, dust and vermin
